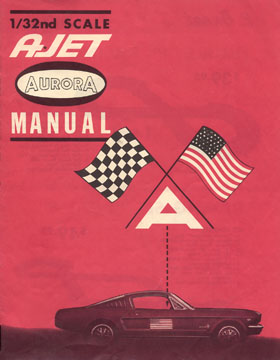

1/32nd SCALE AJET AURORA MANUAL (page 01)

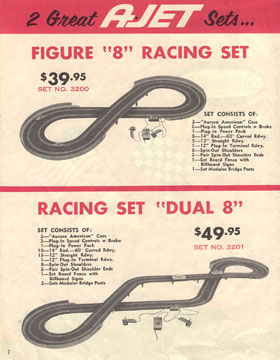

2 Great AJET Sets... FIGURE 8 RACING SET Set NO. 3200 $39.95 - RACING SET DUAL 8 Set NO. 3201 $49.95 (page 02)

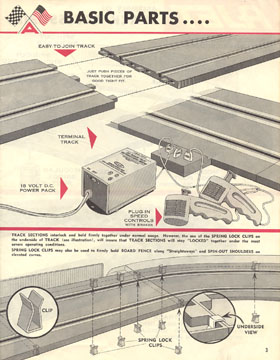

BASIC PARTS - EASY TO JOIN TRACK - JUST PUSH PIECES OF TRACK TOGETHER FOR GOOD TIGHT FIT - 18 VOLT D.C. POWER PACK - PLUG-IN SPEED CONTROLS WITH BRAKES - TRACK SECTIONS interlock and hold firmly together under normal usage. However, the use of the SPRING LOCK CLIPS on the underside of TRACK (see illustration), will insure that TRACK SECTIONS will stay LOCKED together under the most severe operating conditions. (page 02)

SPRING LOCK CLIPS may also be used to firmly hold BOARD FENCE along Starightaways and SPIN OUT SHOULDERS on elevated curves. (page 03)

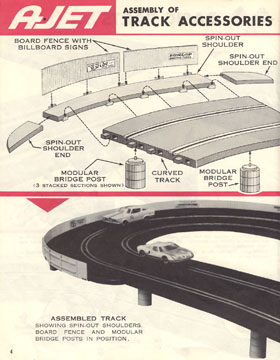

AJET ASSEMBLY OF TRACK ACCESSORIES - BOARD FENCE WITH BILLBOARD SIGNS - SPIN OUT SHOULDER - SPIN OUT SHOULDER END - MODULAR BRIDGE POST (3 STACKED SECTIONS SHOWN) - CURVED TRACK ASSEMBLED TRACK SHOWING SPIN OUT SHOULDERS, BOARD FENCE AND MODULAR BRIDGE POSTS IN POSITION. (page 04)

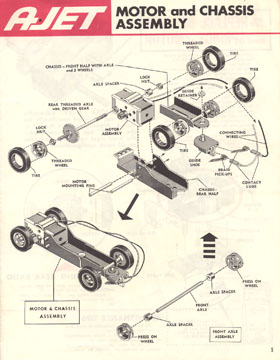

AJET MOTOR and CHASSIS ASSEMBLY TIRE - THREADED WHEEL - LOCK NUT - REAR THREADED AXLE with DRIVEN GEAR - MOTOR ASSEMBLY - AXLE SPACER - LOCK NUT - MOTOR MOUNTING PINS - CHASSIS REAR HALF - GUIDE RETAINER - GUIDE SHOE - BRAID PICK UPS - CONTACT LUGS - CONNECTING WIRES - CHASSIS FRONT HALF WITH AXLE and 2 WHEELS - MOTOR AND CHASSIS ASSEMBLY - FRONT AXLE ASSEMBLY - PRESS ON WHEEL - AXLE SPACER - FRONT AXLE (page 05)

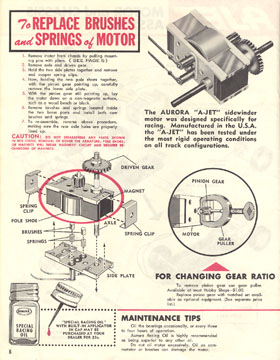

To REPLACE BRUSHES and SPRINGS of MOTOR The AURORA A-JET sidewinder motor was designed specifically for racing. Manufactured in the U.S.A. the A-JET has been tested under the most rigid operating conditions on all track configurations. (page 06)

PARTS LIST Spare Parts and Service are available at your local Authorized A-JET Service Station. (See Service Station List). If you are not located near a Service Station, you may order parts direct from factory. Please order by item number and description above. Minimum order 50¢ No C.O.D.'s. AURORA PLASTIC CORP., WEST HEMPSTEAD, NEW YORK 11552 (page 07)

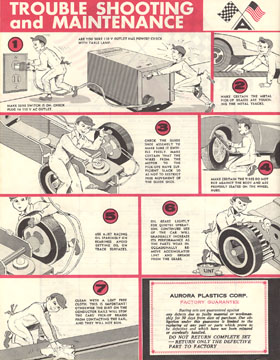

TROUBLE SHOOTING and MAINTENANCE - (1) Make sure switch is on. Check plug in 110V AC outlet. Are you sure 110V has power? Check with table lamp. (2) Make certain the metal pick up braids are touching the metal tracks (3) Check the guide shoe assembly to make sure it swivels freely. Make certain that the wires from the motor to the pick ups have sufficient slack so as not to restrict free movement of the shoe guide. (4) Make certain the tires do not rub against the body and are properly seated on the wheel hubs. (5) Use AJET Racing Oil sparingly on bearings. Avoid getting oil on track surfaces. (6) Oil gears lightly for quieter operation. Continued use of the car will gradually increase its performance as the parts wear in. Occasionally remove accumulated lint and grease from the gears. (7) Clean with a lint-free cloth. This is important! Otherwise the dirt on the conductor rails will stop the cars pickup shoes from contacting the rail, and they will not run.

AURORA PLASTICS CORP. FACTORY GUARANTEE Racing sets are guaranteed against any defects due to faulty material or workmanship for 30 days from date of purchase. Our obligation under this guarantee is limited to the replacing of any part or parts which prove to be defective and which have not been misused or carelessly handled. DO NOT RETURN COMPLETE SET - RETURN ONLY THE DEFECTIVE PART TO FACTORY (page 08)

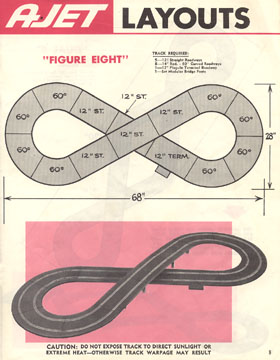

AJET LAYOUTS - FIGURE EIGHT (28 X 68) TRACK REQUIRED 5 - 12 inch Straight Roadways, 8 - 14 inch 60 Degree Radius Curved Roadways, 1 - 12 inch Plug Un Terminal Roadway, 1 - Set Modular Bridge Posts

CAUTION: Do not expose track to direct sunlight or extreme heat - otherwise track warpage may result (page 09)

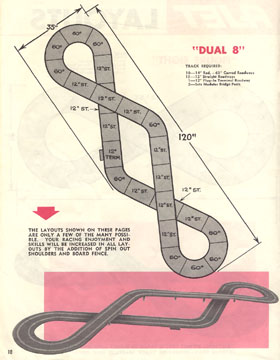

DUAL 8 (35 X 120) TRACK REQUIRED 10 - 14 inch 60 Degree Radius Curved Roadways, 1 - 12 inch Plug Un Terminal Roadway, 13 - 12 inch Straight Roadways, 2 - Set Modular Bridge Posts THE LAYOUTS SHOWN ON THESE PAGES ARE ONLY A FEW OF THE MANY POSSIBLE. YOUR RACING ENJOYMENT AND SKILLS WILL BE INCREASED IN ALL LAYOUTS BY THE ADDITION OF SPIN OUT SHOULDERS AND BOARD FENCE. (page 10)

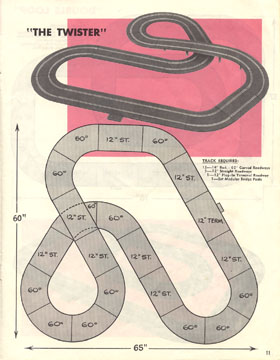

THE TWISTER (60 X 65) TRACK REQUIRED 13 - 14 inch 60 Degree Radius Curved Roadways, 7 - 12 inch Straight Roadways, 1 - 12 inch Plug Un Terminal Roadway, 1 - Set Modular Bridge Posts (page 11)

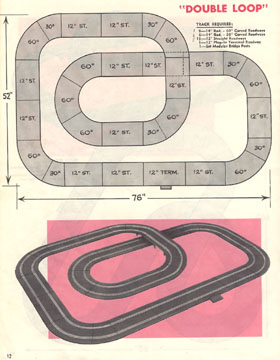

DOUBLE LOOP (52 X 76) TRACK REQUIRED 9 - 14 inch 60 Degree Radius Curved Roadways, 4 - 14 inch 30 Degree Radius Curved Roadways, 13 - 12 inch Straight Roadways, 1 - 12 inch Plug Un Terminal Roadway, 1 - Set Modular Bridge Posts (page 12)

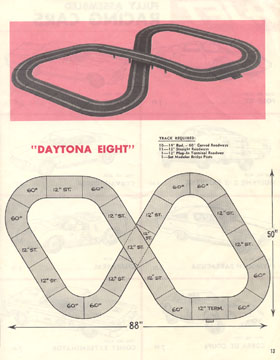

DAYTONA EIGHT (50 X 88) TRACK REQUIRED 10 - 14 inch 60 Degree Radius Curved Roadways, 11 - 12 inch Straight Roadways, 1 - 12 inch Plug Un Terminal Roadway, 1 - Set Modular Bridge Posts (page 13)

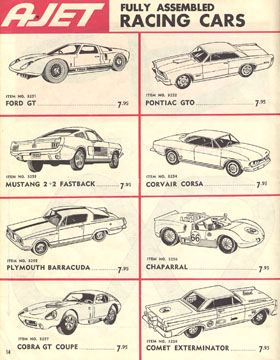

AJET FULLY ASSEMBLED RACING CARS - ITEM NO. 3251 FORD GT $7.95 - ITEM NO. 3252 PONTIAC GTO $7.95 - ITEM NO. 3253 MUSTANG 2+2 FASTBACK $7.95 - ITEM NO. 3254 CORVAIR CORSA $7.95 - ITEM NO. 3255 PLYMOUTH BARRACUDA $7.95 - ITEM NO. 3256 CHAPARRAL $7.95 - ITEM NO. 3257 COBRA GT COUPE $7.95 - ITEM NO. 3258 COMET EXTERMINATOR $7.95 (page 14)

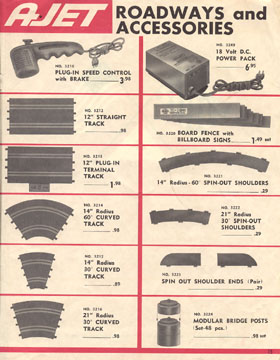

AJET ROADWAYS and ACCESSORIES - PLUG IN SPEED CONTROL with BRAKE NO. 3210 $3.98 - 12 INCH STRAIGHT TRACK NO. 3210 $0.98 - 12 INCH PLUG IN TERMINAL TRACK NO. 3213 $1.98 - 14 INCH RADIUS 60 DEGREE CURVED TRACK NO. 3214 $0.98 - 14 INCH RADIUS 30 DEGREE CURVED TRACK NO. 3215 $0.89 - 21 INCH RADIUS 30 DEGREE CURVED TRACK NO. 3216 $0.98 - BOARD FENCE with BILBOARD SIGNS NO. 3220 $1.49 set - 14 INCH RADIUS 60 DEGREE SPIN OUT SHOULDERS NO. 3221 $0.29 - 21 INCH RADIUS 30 DEGREE SPIN OUT SHOULDERS NO. 3222 $0.29 - SPIN OUT SHOULDER ENDS (Pair) NO. 3223 $0.29 - MODULAR BRIDGE POSTS (Set 48 pcs.) NO. 3224 $0.98 set - 18 Volt D.C. POWER PACK NO. 3249 $6.95 (page 15)

AURORA PLASTIC CORP., WEST HEMPSTEAD, NEW YORK MADE ENTIRELY IN THE U.S.A. BY THE AURORA PLASTICS CORP., THE WORLD'S LARGEST MANUFACTURER OF HOBBY PRODUCTS (page 16)
