ATLAS HO SCALE ZINGERS SLOTCAR CHASSIS

by Joe Bodnarchuk - MisterAtlas

The ZINGERS slotcar chassis, which was produced from 1966 to 1970, is a redesigned modification of the Slimline PANTHER XX slot car Chassis. The ZINGERS were touted as “The fastest HO slotcars for the price on the market AT THE LOW LOW PRICE OF $1.50.” With proper care and maintenance, your Atlas ZINGERS slotcars should give you countless hours of satisfactory running. Unfortunately, maintaining a ZINGERS chassis is an arduous task at best because:

  1. They are extremely difficult to dismantle.
  2. They are often found broken.
  3. Replacement parts are difficult to locate.
From a racer’s standpoint, repairing ZINGERS chassis to perfect status is nearly impossible. From a collectors point of view, finding perfect ZINGERS slot cars for the shelf is equally difficult.

Atlas HO Scale Slot Car Chassis Marketplace Introduction Timeline
Atlas HO Scale Slot Car Chassis Marketplace Introduction Timeline
Standard Chassis - Slimline Chassis - Panther XX Chassis - Midget Chassis - ZINGERS Chassis

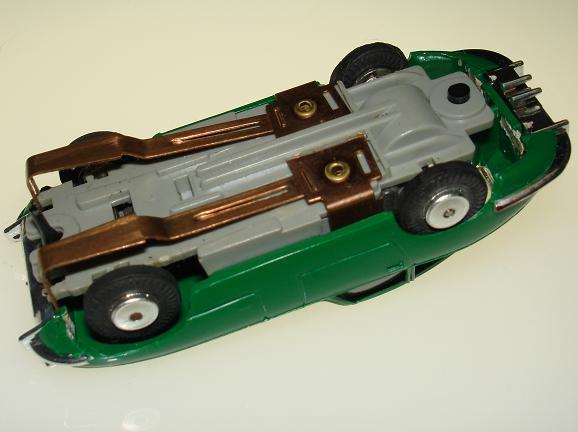

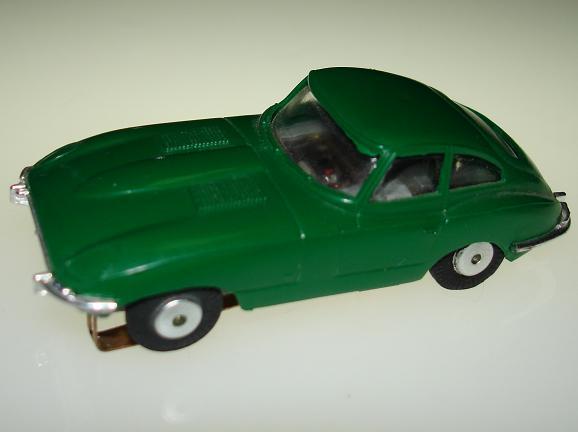

ATLAS CHROME BUMPER JAGUAR XKE WITH ZINGERS CHASSIS
Atlas HO Scale Jaguar XKE British Racing Green Atlas HO Scale Jaguar XKE ZINGERS Chassis


ILLUSTRATED EXPLODED CHASSIS SCHEMATIC
Atlas HO Scale Slot Car Chassis Schematic

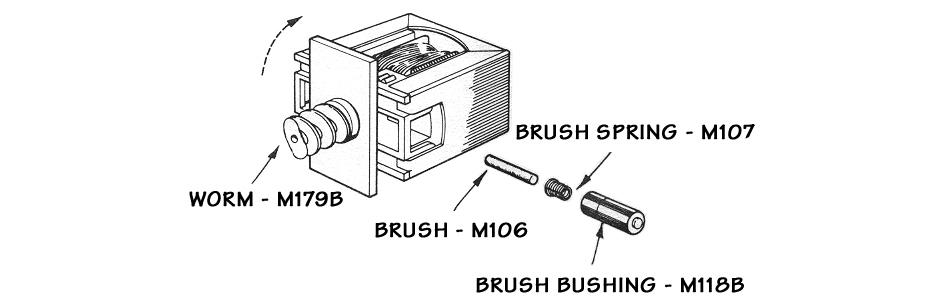

ILLUSTRATED EXPLODED MOTOR SCHEMATIC
Atlas HO Scale ZINGERS Slot Car Motor Schematic

To remove BRUSH ASSEMBLY, which includes BRUSH BUSHING #M118B, BRUSH SPRING #M107 and BRUSH #M106, turn lead weight as shown and pry out BRUSH BUSHING #M118B with appropriate tool.

HINT: Use FORMULA XX special slot car racing lube for best results. A small drop of FORMULA XX on WORM #M179B and AXLE GEAR #C164B will last for several hours of fast racing. Use of light oil, will spin off, causing excessive wear.

Keep slot car track roadway clean by wiping with dry soft cloth. Static electricity will attract lint to axles and gears causing improper performance and possible damage. HINT: For best results do NOT run any slot car set directly on carpet.

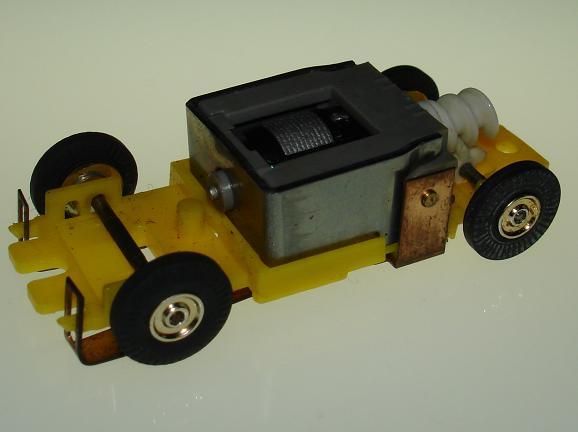

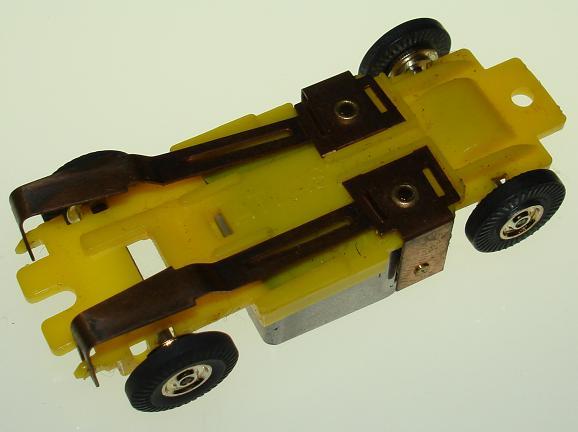

ATLAS VERSION I ZINGERS YELLOW CHASSIS
Atlas HO Scale Yellow Version I Chassis Motor View Atlas HO Scale Yellow Version I Chassis Pickup Shoes View


ATLAS VERSION I ZINGERS GREY CHASSIS

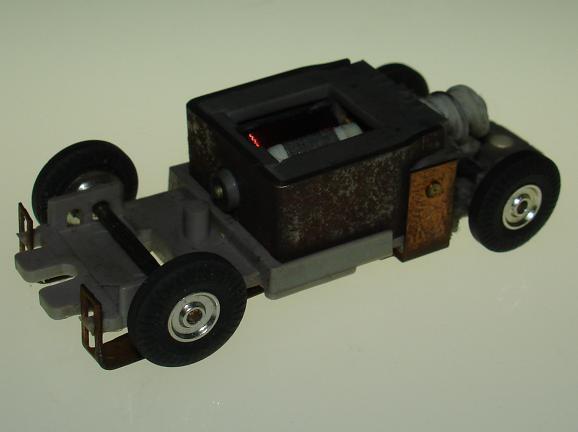

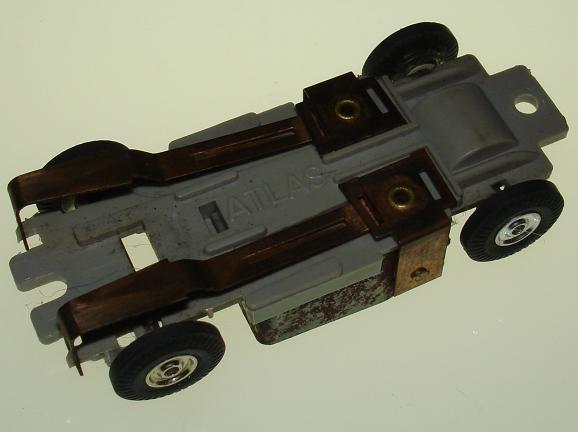

Atlas HO Scale Grey Version I Chassis Motor View Atlas HO Scale Grey Version I Chassis Pickup Shoes View



ATLAS ZINGERS VERSION I/II COMPARISON MOTOR VIEW

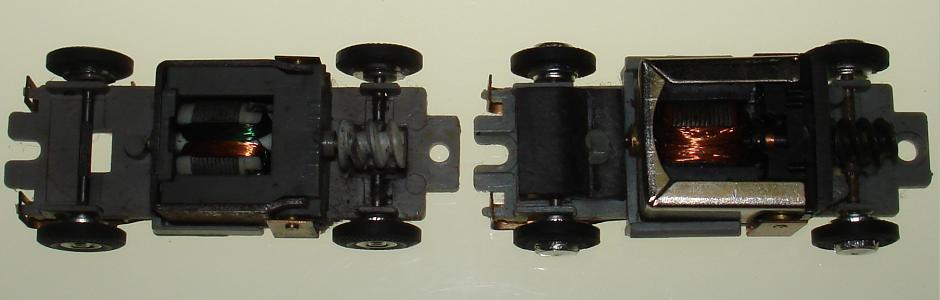

Atlas HO Scale ZINGERS Chassis Version One Two Comparison Motor View

ATLAS ZINGERS CHASSIS COMPARISON TABLE MOTOR VIEW

Version I Version II
Mabuchi Slimline Armature and Standard Field Clip & Motor Frame Mabuchi ZINGERS Armature and Heavy Duty Field Clip & Motor Frame
No Front Balance Weight Yes Front Balance Weight
Front Balance Weight Pin Against Front Motor Mount Front Balance Weight Pin Moved 2mm From Front Motor Mount
No Front Balance Weight Vertical Support Prongs Yes Front Balance Weight Vertical Support Prongs
No Side Chassis Slide Guides Yes Side Chassis Slide Guides



ATLAS ZINGERS VERSION I/II COMPARISON

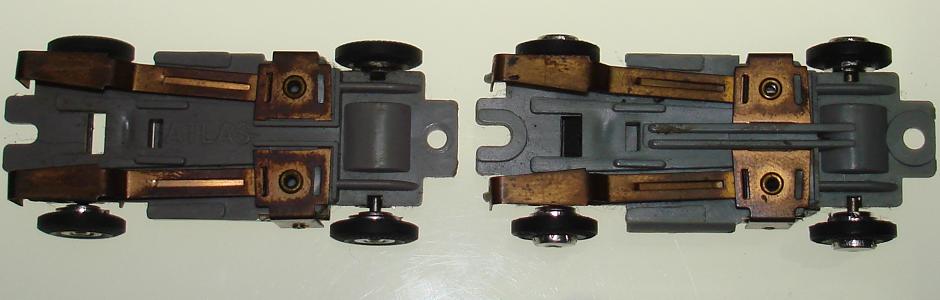

Atlas HO Scale ZINGERS Chassis Version One Two Comparison Pickup Shoes View

ATLAS ZINGERS CHASSIS COMPARISON TABLE PICKUP SHOES VIEW

Version I Version II
Screw Mounted Chassis Pin Mounted Chassis
Unreinforced Chassis Post Area Mounts Reinforced Chassis Post Area Mounts
Hubs - C126 Hubs - C126A
Chassis Marked ATLAS Chassis Unmarked
10mm Support Rails 23mm Support Rails Extend Into Axle Gear Well

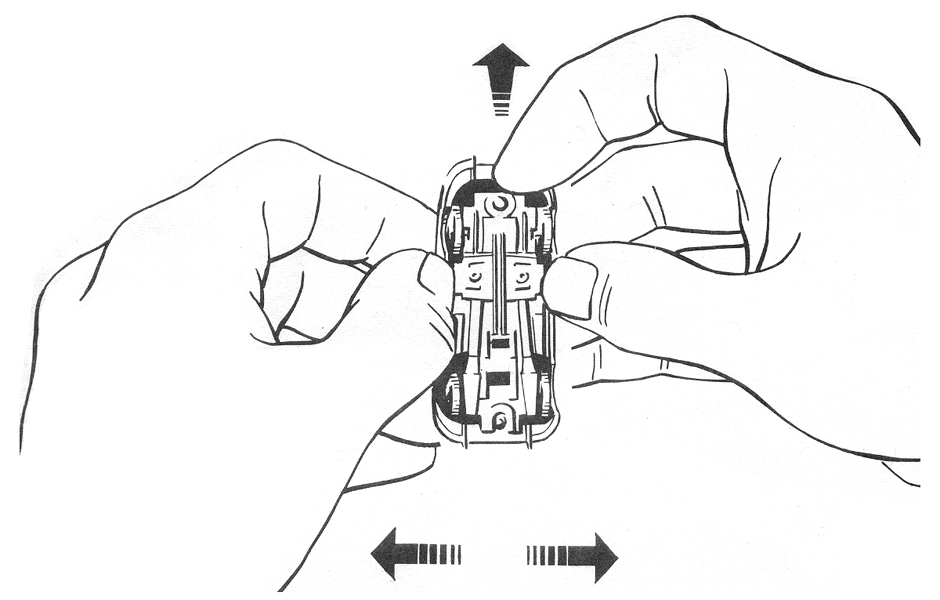

ILLUSTRATED PROPER CHASSIS REMOVAL
Atlas HO Scale ZINGERS Slot Car Chassis Removal

To remove slotcar body off chassis, gently spread slotcar body with thumbs, then ease rear of ZINGERS chassis up and out with index finger. To replace line up rear guide pin with hole in chassis and snap in place.

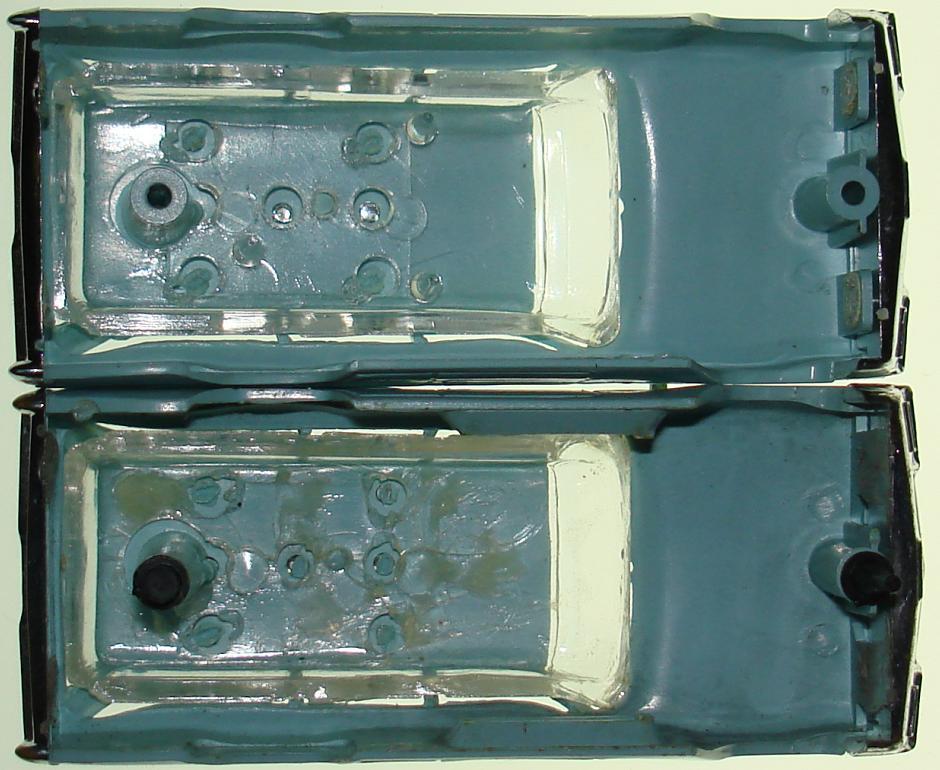

SLIMLINE ZINGER BODY CAVITY COMPARISON
Atlas HO Scale Slimline ZINGERS Slot Car Body Cavity Comparison

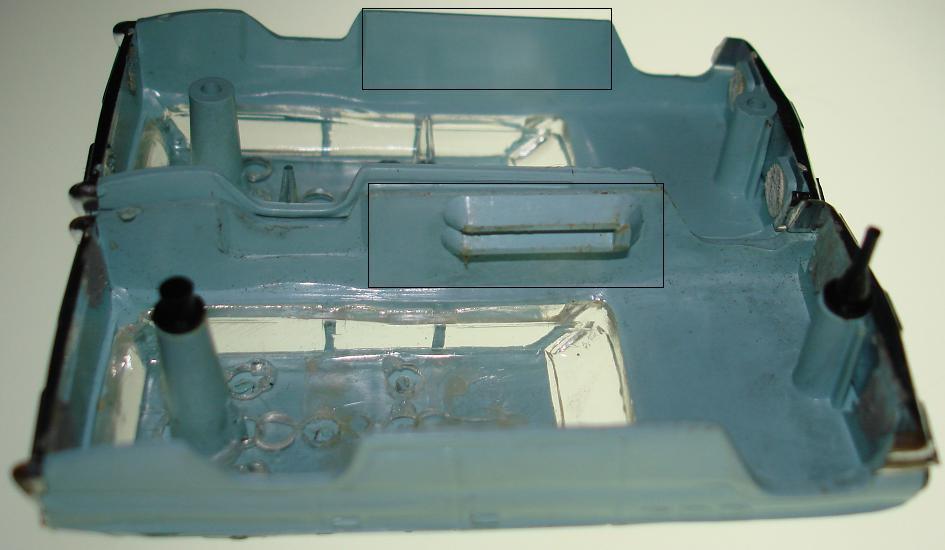

SLIMLINE ZINGER BODY CAVITY INSIDE WALL COMPARISON
Atlas HO Scale Slimline ZINGERS Slot Car Body Cavity Inside Wall Comparison



NOTE: Version I & II ZINGERS chassis connect to the body with either screws or pins. From the factory, ZINGERS Version II chassis were ONLY connected with pins. If you find a ZINGERS Version II chassis that is connected with screws, this is was done after the car was opened from package or removed from a set and NOT at the factory. Any ZINGERS II chassis attached by screws is a sure sign that the chassis was removed for a variety of reasons, such as maintenance, repair, etc. Any ZINGERS I or II chassis found attached to a NON ZINGERS body style is a sure sign that the chassis was tampered with.

Would you like to purchase this chassis or individual replacement parts?
We have many Atlas HO Scale Slot Car Chassis & Parts For Sale


c123 axle c124 axle gear c126 hub c127 tire c129 front guide pin c130 rear guide pin c131 screw c141 chassis c142 motor terminal clip c145 spline gear c148 pickup shoes m104 magnet m106 brush m107 brush spring m112 armature m113 armature bearings m115 field clip m118 brush screw m119 spur gear
