ATLAS HO SCALE SLIMLINE SLOTCAR CHASSIS
by Joe Bodnarchuk - MisterAtlas
which was produced and used in this
slot car from 1964 to 1969,
was designed to permit a truer scale reproduction of
slot cars of this size.
With proper care and maintenance, your
should give you countless hours of satisfactory running.

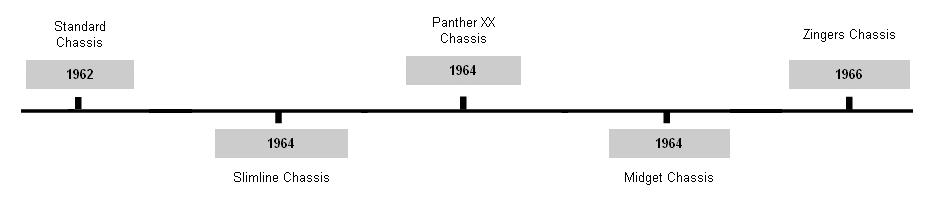

Atlas HO Scale Slot Car Chassis Marketplace Introduction Timeline
Standard Chassis -
Slimline Chassis -
Panther XX Chassis -
Midget Chassis -

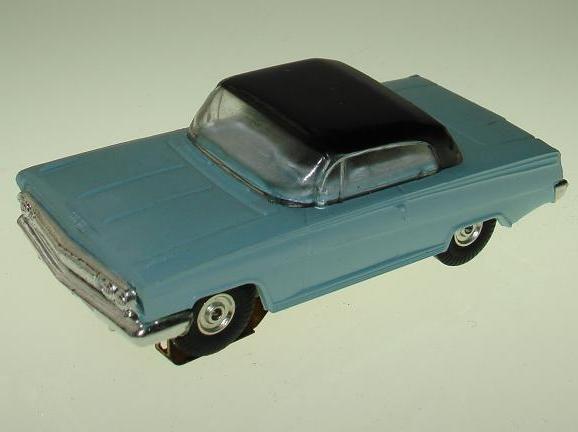

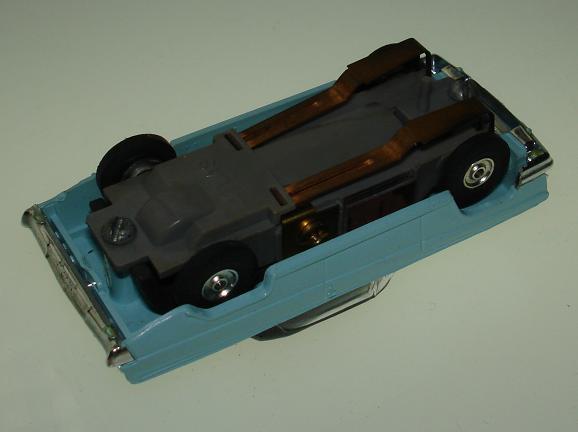

ATLAS CHROME BUMPER CHEVROLET IMPALA WITH SLIMLINE CHASSIS

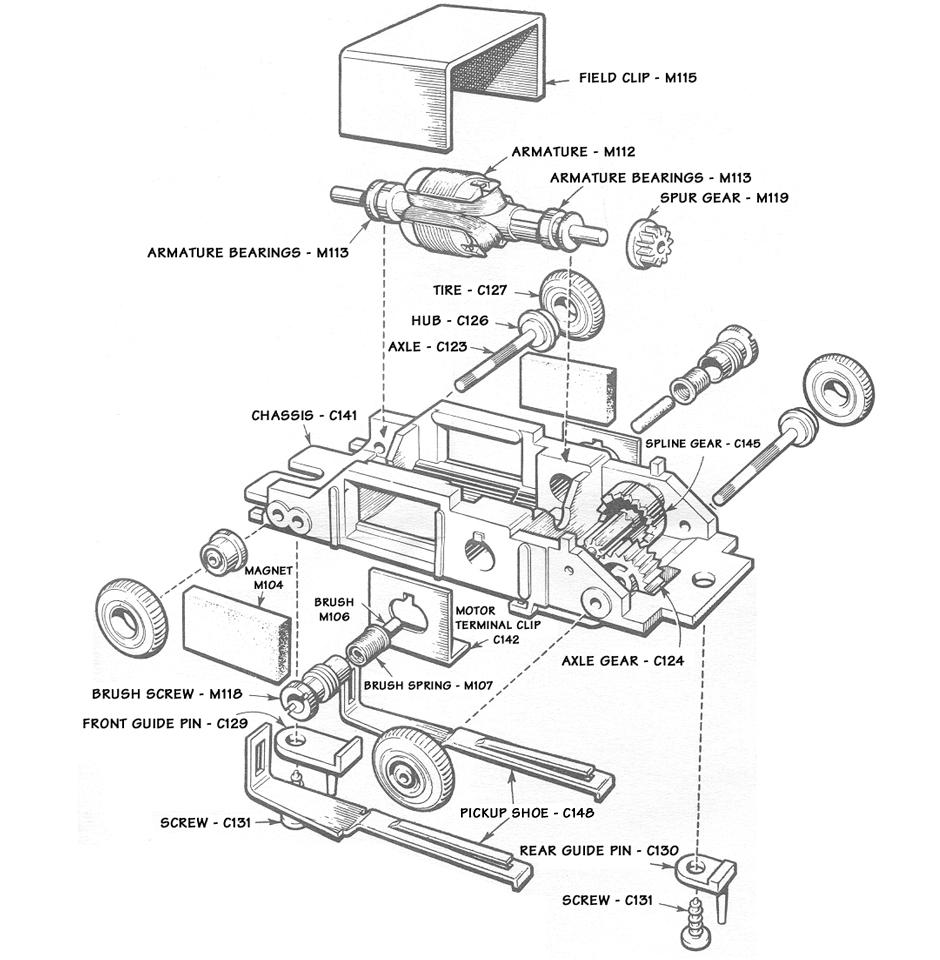

ILLUSTRATED EXPLODED CHASSIS & MOTOR SCHEMATIC

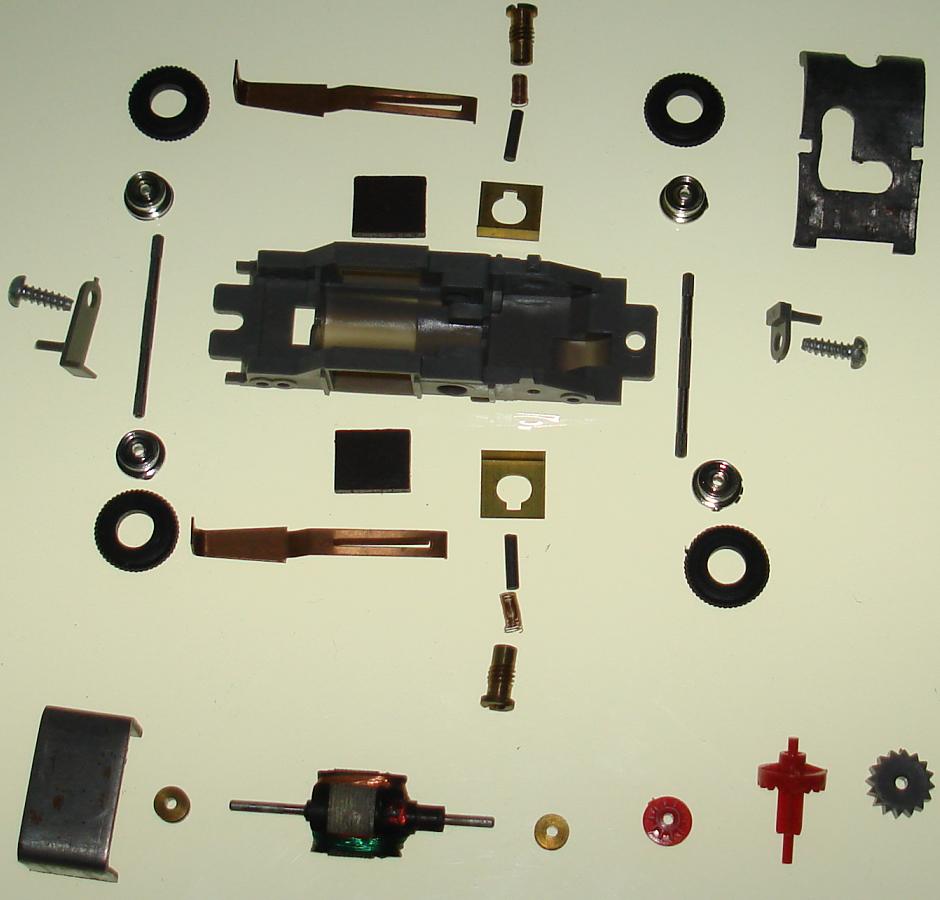

ILLUSTRATED EXPLODED CHASSIS & MOTOR VIEW
CORRECT PROCEDURE FOR ASSEMBLING MOTOR
- Slide ARMATURE BEARING #M113 on each end of shaft.
Be sure thin flanges are to outside.
- Push GEAR #M119 to commutator end of shaft.
Make sure armature bearing is free with a little play, then snap this entire assembly into CHASSIS #C141 as shown.
- Place MOTOR TERMINAL CLIP #C142 to side of chassis between plastic ribs.
Turn chassis upside down and insert PICKUP SHOE #C148.
Repeat for other side.
Pickup shoes will hold terminal clip in place.
- Insert BRUSH #M106 into SPRING #M107 and then into BRUSH SCREW #M118.
This unit is then screwed through slot of terminal clip into hole of chassis.
Make sure screw is tight against terminal clip for contact.
A dab of light grease to each axle, motor shaft and gears are required every few hours of running to keep cars running free.
HINT: Do NOT use excessive amounts of lubricants as any grease or oils on commutators or brushes will slow down your slot cars considerably.
Keep slot car track roadway clean by wiping with dry soft cloth. Static electricity will attract lint to axles and gears causing improper performance and possible damage.
HINT: For best results do NOT run any slot car set directly on carpet.
Would you like to purchase this chassis or individual replacement parts?
We have many HO Scale Slot Car Racing Motor & Chassis Parts For Sale
Atlas Slimline Motor Parts For Sale:
m107 brush spring
m113 armature bearings
m115 field clip
m118 brush screw
m119 spur gear
Atlas Slimline Chassis Parts For Sale:
c124 axle gear
c129 front guide pin
c130 rear guide pin
c142 motor terminal clip
c145 spline gear
c148 pickup shoes
