ATLAS HO SCALE PANTHER XX SLOTCAR CHASSIS
by Joe Bodnarchuk - MisterAtlas

The PANTHER XX slotcar chassis, which was produced and used in this slot car from 1964 to 1969, was designed to permit a truer scale reproduction of slot cars of this size. With proper care and maintenance, your Atlas PANTHER XX slotcars should give you countless hours of satisfactory running.

Atlas HO Scale Slot Car Chassis Marketplace Introduction Timeline

Standard Chassis - Slimline Chassis - Panther XX Chassis - Midget Chassis - ZINGERS Chassis

ATLAS CHROME BUMPER CHEVROLET IMPALA WITH PANTHER XX CHASSIS

Atlas HO Scale Chevrolet Impala Hardtop Slimline Chassis

ILLUSTRATED EXPLODED CHASSIS & MOTOR SCHEMATIC

Atlas HO Scale Slot Car Chassis Schematic

ILLUSTRATED EXPLODED CHASSIS & MOTOR VIEW

Atlas HO Scale Slot Car Chassis & Motor View

CORRECT PROCEDURE FOR ASSEMBLING MOTOR

Slide ARMATURE BEARING #M113 on each end of shaft. Be sure thin flanges are to outside.
Push GEAR #M119 to commutator end of shaft. Make sure armature bearing is free with a little play, then snap this entire assembly into CHASSIS #C141 as shown.
Place MOTOR TERMINAL CLIP #C142 to side of chassis between plastic ribs. Turn chassis upside down and insert PICKUP SHOE #C148. Repeat for other side. Pickup shoes will hold terminal clip in place.
Insert BRUSH #M106 into SPRING #M107 and then into BRUSH SCREW #M118. This unit is then screwed through slot of terminal clip into hole of chassis. Make sure screw is tight against terminal clip for contact.

A dab of light grease to each axle, motor shaft and gears are required every few hours of running to keep cars running free. HINT: Do NOT use excessive amounts of lubricants as any grease or oils on commutators or brushes will slow down your slot cars considerably.

Keep slot car track roadway clean by wiping with dry soft cloth. Static electricity will attract lint to axles and gears causing improper performance and possible damage. HINT: For best results do NOT run any slot car set directly on carpet.

ATLAS INDIANAPOLIS RACER - AURORA McLAREN BRM

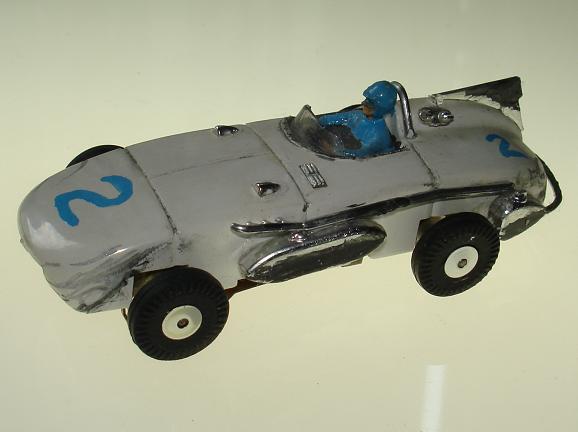

Atlas HO Scale 1353 Indianapolis Racer Slotcar Body With Panther XX Slot Car Chassis

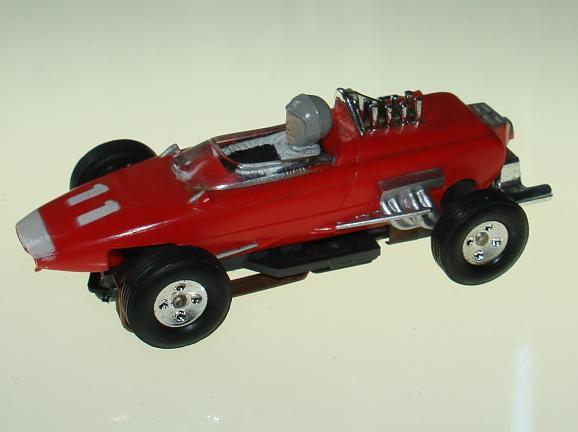

Aurora HO Scale 1405 McLaren BRM Slotcar Body With Slimline Slot Car Chassis

ATLAS PANTHER XX AURORA SLIMLINE CHASSIS COMPARISON

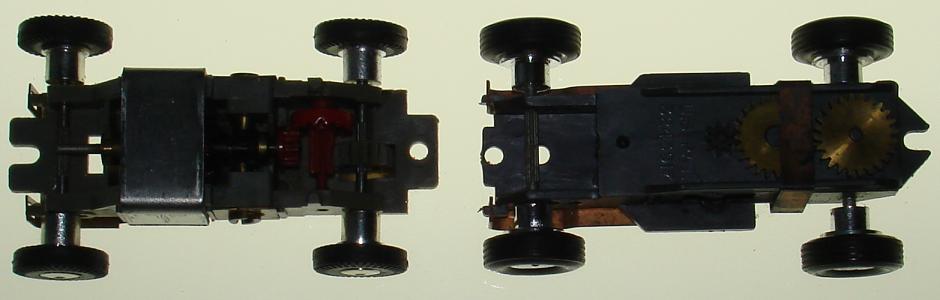

Atlas Panther XX Aurora Slimline HO Scale Chassis Comparison Motor View

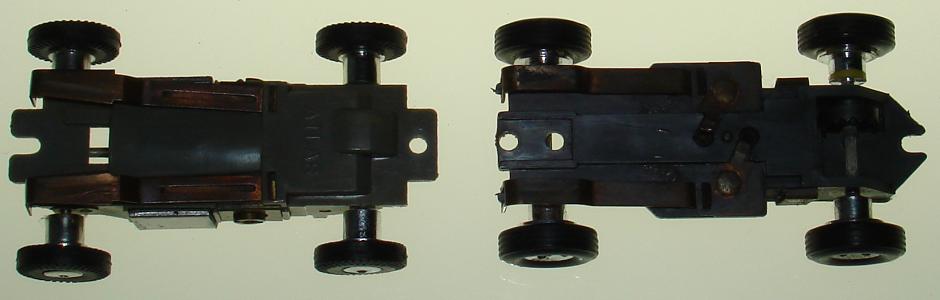

Atlas Panther XX Aurora Slimline HO Scale Chassis Comparison Pickup Shoes View

Atlas produced their version of the Panther XX Chassis in 1964. Almost five (5) years before Aurora introduced their version. Atlas planned on using this chassis with their entire line, but eventually issued it mainly with their popular line of F1 Kit Cars calling it the PANTHER XX. Aurora used this chassis on only three (3) models. The most popular were the Model Motoring 1932 Ford Pickup Trucks which were injection molded in red, orange, yellow, lime green, and blue. The other two (2) slotcars Aurora Model Motoring produced with their SLIMLINE chassis were the Formula One F1 racers. The red McLaren BRM and the green Repco Brabham. Let me assure you, as I did with the Atlas standard chassis, that each stock Atlas PANTHER XX chassis meets or exceeds the stock Aurora SLIMLINE chassis on many different levels.

Would you like to purchase this chassis or individual replacement parts?
We have many Atlas HO Scale Slot Car Chassis & Parts For Sale

c123 axle c124 axle gear c126 hub c127 tire c129 front guide pin c130 rear guide pin c131 screw c141 chassis c142 motor terminal clip c145 spline gear c148 pickup shoes m104 magnet m106 brush m107 brush spring m112 armature m113 armature bearings m115 field clip m118 brush screw m119 spur gear
